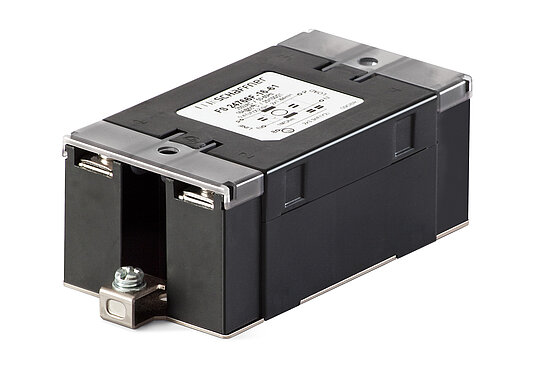

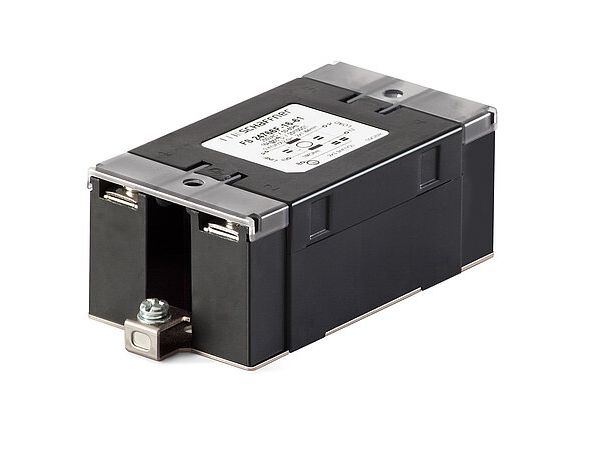

Standard Performance Single-Phase Filters FN2450

Safe and ergonomic EMC/EMI filter with very low leakage current

• Light weight plastic enclosure design

• Very low filter leakage current

• Hinged safety covers

• Embedded filter terminals

• Different performance levels

• Environmental friendly design without potting compound

Maximum continuous operating voltage

250 VAC, 50/60 Hz

Rated currents

6 to 20 A @ 55°C

Operating frequency

DC to 400 Hz

High potential test voltage

P/N -> E 2500 VAC for 60 sec * (FN2450G & FN2450F)

P/N -> E 4000 VAC for 60 sec * (FN2450B)

P -> N 1100 VDC for 2 sec *

Temperature range (operation and storage)

-25°C to +100°C (25/100/21)

Flammability corresponding to

UL 94 V-0 (safety covers UL 94V-1)

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986,

IEC/EN 60939, EN 60601-1

* Type testing only
