Mersen熔断器FR10GR系列快速熔断器

download: FR10GR69V

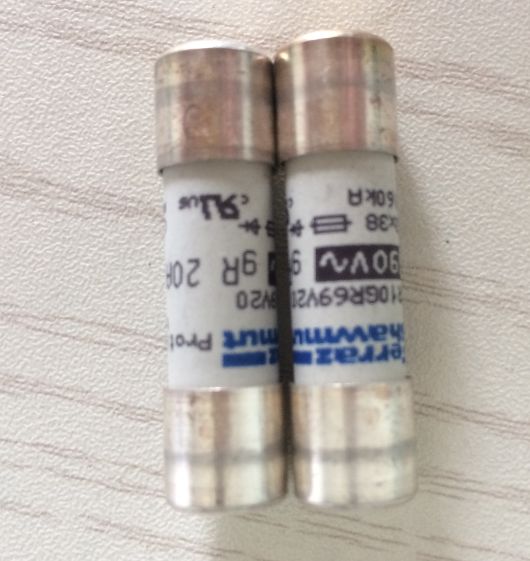

Protistor® Cylindrical fuse-links  10x38 gR 690VAC from 1 to 32A

产品应用：

Protection of small inverters,
UPS systems, motor drives and
similar 700V or less equipment.

额定参数：

690VAC IEC 60269-4 and 700VAC UL Recognized 500VDC UL Recognized

认证信息：

UL/CSA Recognized ComponentIEC 60269-4 Compliance
AC: UL Guide No. E76491
RoHS Compliant

订购代码：

FR10GR69V1 L1014563
FR10GR69V1.25 N1014565
FR10GR69V1.5 P1014566
FR10GR69V2 Q1014567
FR10GR69V2.5 T1014570
FR10GR69V3 V1014571
FR10GR69V4 W1014572
FR10GR69V5 X1014573
FR10GR69V6 Y1014574
FR10GR69V8 Z1014575
FR10GR69V10 A1014576
FR10GR69V12.5 C1014578
FR10GR69V16 D1014579
FR10GR69V20 E1014580
FR10GR69V25 F1014581
FR10GR69V30 G1014582
FR10GR69V32 H1014583
