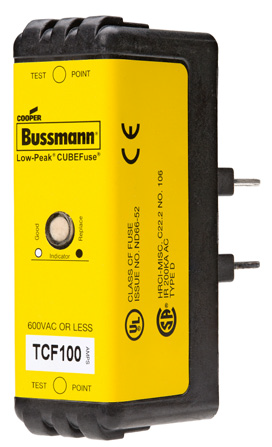

TCF Class CF Low-Peak time-delay CUBEFuse™

Ratings
• Volts
• 600 Vac (or less)
• 300 Vdc (or less)
• Amps 1-100 A

Typical applications
• Electrical panelboards
• Machinery disconnects
• Industrial controls and panels
• Required finger-safe systems

Catalog no. (amps)
Indicating versions
TCF6 TCF20 TCF40 TCF70TCF10 TCF25 TCF45 TCF80
TCF15 TCF30 TCF50 TCF90
TCF17-1/2 TCF35 TCF60 TCF100
Non-indicating versions
TCF1RN TCF17-1/2RN TCF40RN TCF80RN
TCF3RN TCF20RN TCF45RN TCF90RN
TCF6RN TCF25RN TCF50RN TCF100RN
TCF10RN TCF30RN TCF60RN
TCF15RN TCF35RN TCF70RN
